UniQube SQ-BPW

Domestic Water Heater - Stratified Separator Storage Tank

UniQube SQ-BPW

On-demand heating of drinking water is the principle that is used for domestic water heaters. Heated drinking water is hygienic and can be used in many purposes. When choosing a non-solar heat source, this is most efficient model.

Description

Stratified Domestic water heater function

continuous ﬂow domestic water heater, a hygienic storage tank
domestic hot water heat exchanger made of stainless steel INOX 316 L corrugated pipe
device for stratification of the heat
hydraulic separator between the heat source circuit and the heating circuit
equipped with four sleeves for sensors
polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
all ﬂanges are replaceable and it can be modified to any other type of storage tank if necessary
electric heater back up

Technical Specifications

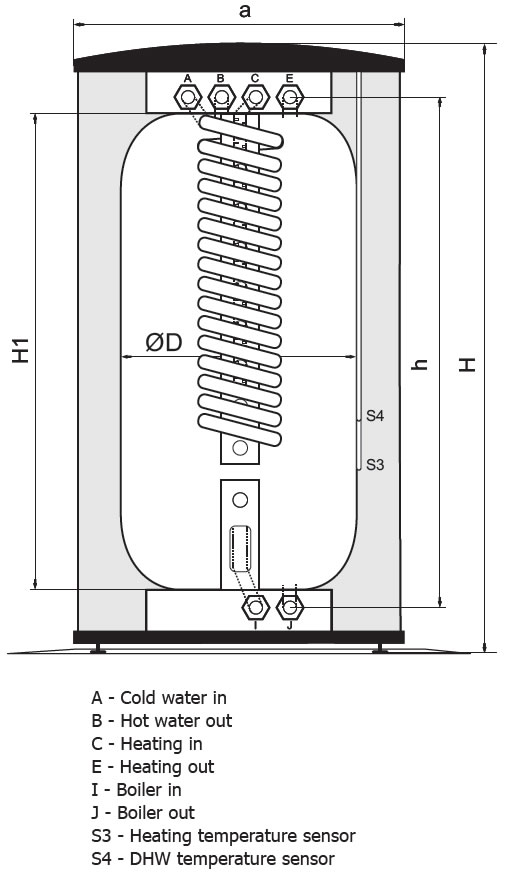

UNIQUBE MODEL - DOMESTIC WATER HEATER, STRATIFIED SEPARATOR STORAGE TANK
TYPE SQ-BPW		310	440
D (diameter)	(mm)	620	620
H1 (height)	(mm)	1300	1730
h (connectors)	(mm)	1470	1900
H (height)	(mm)	1570	2000
a (width)	(mm)	734	734
max. working temp.	(°C)	90	90
max. working pressure	(bar)	6	6
max. test pressure	(bar)	9	9
Net tank capacity	(l)	295	421
Approx. weight	(kg)	108	142
S3 Heating sensor position	(mm)	910	1350
S4 DHW sensor position	(mm)	710	1150
Pivot measurement	(mm)	1730	2130
Water Heat Exchanger
dimension		5/4"	5/4"
max. working pressure	(bar)	10	10
max. test pressure	(bar)	15	15
capacity	(l)	15	19
output area	(m²)	3,8	5

Production of Domestic Hot Water

Downloads

UniQube Brochure

UniQube User Manual

Production of DHW UniQube SQ-BPW

Certificates

Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
