UniQube Drain Back Reservoir

Solar Draining Tank

UniQube Drain Back Reservoir

Converts any solar tank to drain back tank – adding this reservoir to the solar thermal circuit this reservoir will convert your system into the drain back solar thermal system.

Description

Utilizes maximum of solar thermal heat exchanger
With drain back solar thermals you can install as much collector's power as solar heat exchanger can transfer.

Converts any solar tank to drain back tank
Adding this reservoir to the solar thermal circuit this reservoir will convert your system into the drain back solar thermal system.

UniQube performances
this reservoir is produced according to our UniQube standards. Quboid shape, insulation thickness of UniQube, flat connectors, perfect design.

Easy to install
Drain Back reservoir can be installed on a simple table or on a wall, 650mm above the floor, if on the same floor is installed its UniQube solar tank.

Long warranty term
This reservoir is warrantied by 10 years.

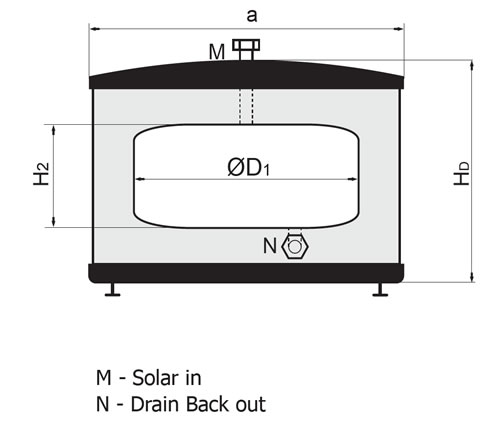

Technical Specifications

UNIQUBE DRAIN BACK RESERVOIR
D1 (diameter)	(mm)	600
Hd (height)	(mm)	450
H2 (height)	(mm)	140
a (width)	(mm)	734
Connections M, N		5/4"
max. working pressure	(bar)	1,5
max. test pressure	(bar)	2,5
reservoir volume	(l)	40
Approx. weight	(kg)	16

Downloads

UniQube Drain Back Reservoir Brochure

UniQube Drain Back Reservoir User Manual

Certificates

Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
