Schematics

The hydraulic schematics below are grouped by the primary heat generator, as follows:

Heat Pump

UniQube

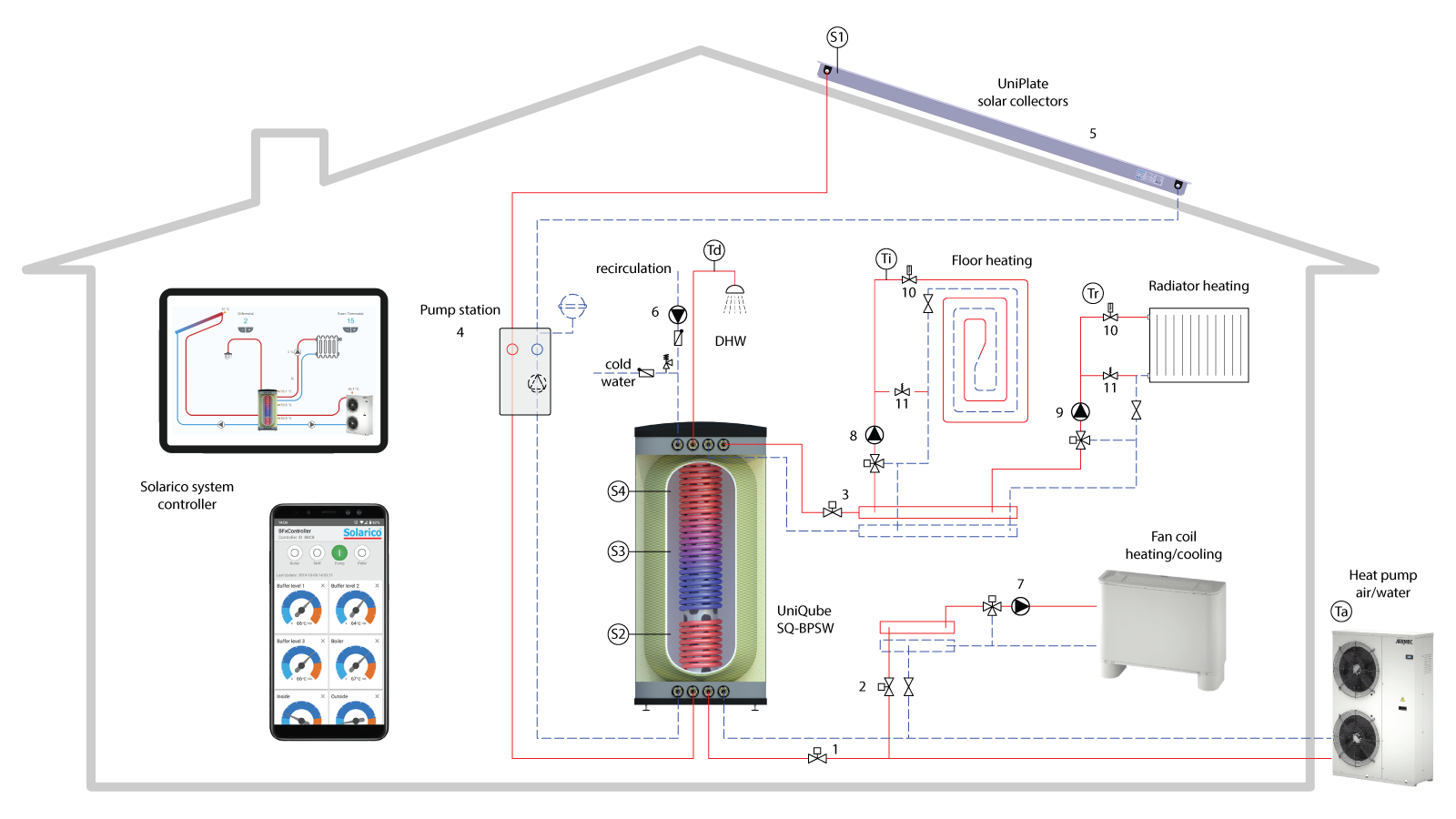

UniQube SQ-BPSW with Heat Pump Schematic Installation
UniQube SQ-BPSW with Heat Pump Schematic Installation

Solar-Heat Pump All in One solution

  • Save up to 60% energy with A-class efficient UniQubes
  • Free sun power for Home Heating
  • Free sun power for Hygienic Hot Water
  • Instant hygienic hot water
  • Comfort temperature regulation for each room
  • Improving the lifetime of pumps
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • Storage of the excessive sun heat
  • Improved annual system efficiency by 20% and more

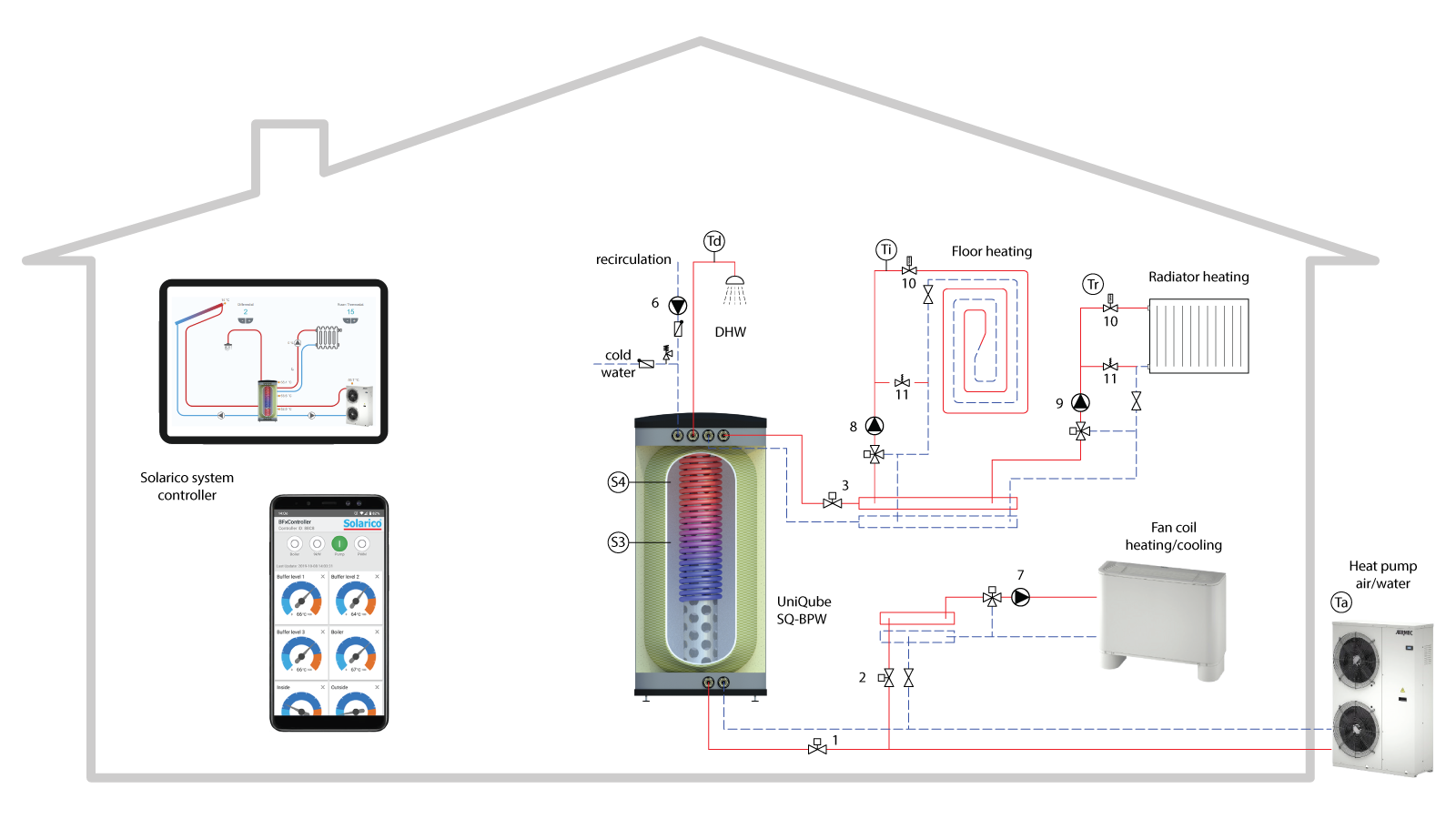

UniQube SQ-BPW with Heat Pump Schematic Installation
UniQube SQ-BPW with Heat Pump Schematic Installation

Heat Pump All in One solution - less installation cost

  • Save up to 60% energy with A-class efficient UniQubes
  • Instant hygienic hot water
  • Comfort temperature regulation for each room
  • Improving the lifetime of pumps
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • Improved annual system efficiency by 20% and more
  • No need to invest in renewable solar heat system

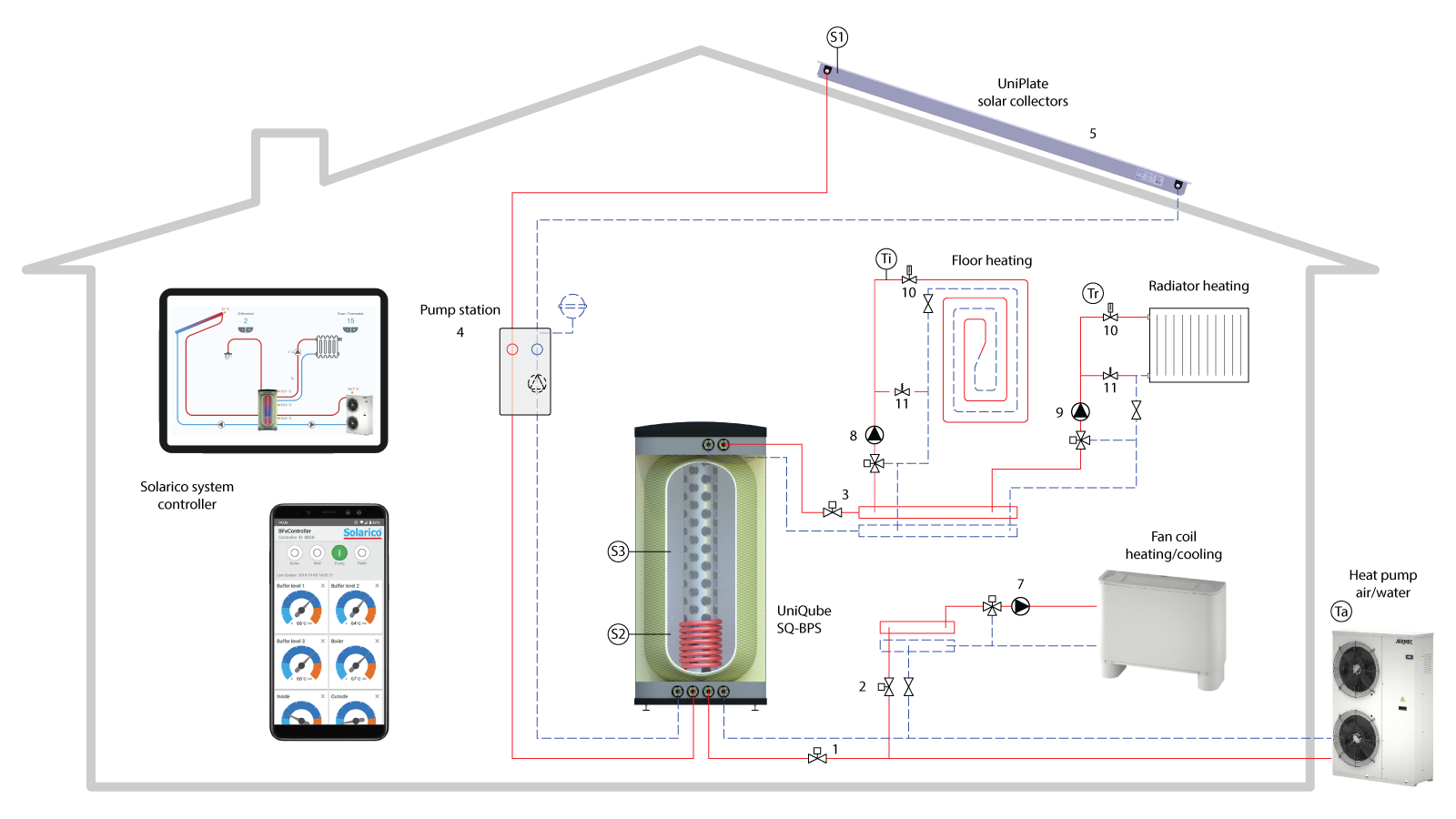

UniQube SQ-BPS with Heat Pump Schematic Installation
UniQube SQ-BPS with Heat Pump Schematic Installation

Heating with Sun Power and Heat Pump

  • Save up to 60% energy with A-class efficient UniQubes
  • Free sun power for Home Heating
  • Comfort temperature regulation for each room
  • Improving the lifetime of pumps
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • Storage of the excessive sun heat
  • Improved annual system efficiency by 20% and more

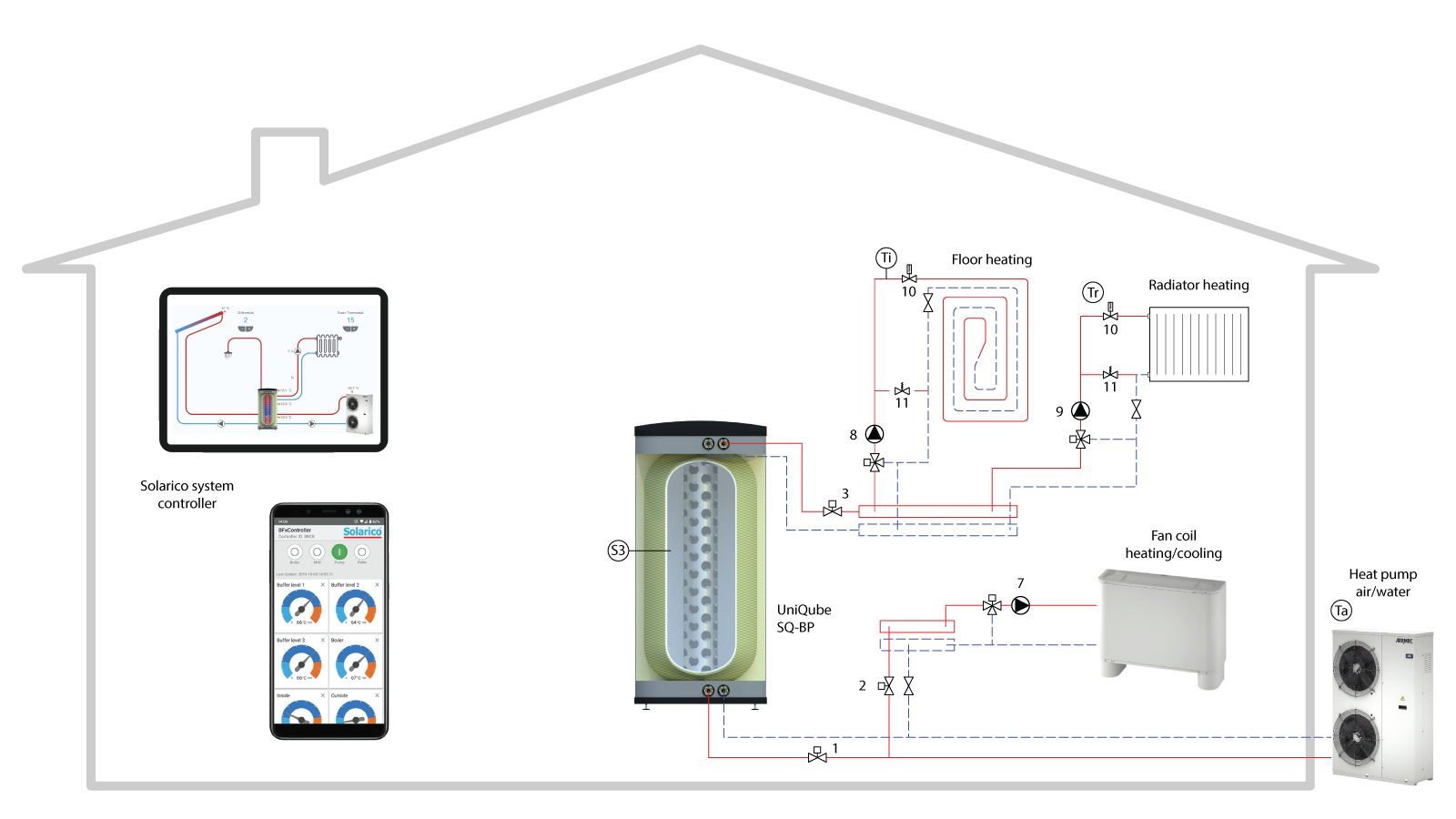

UniQube SQ-BP Schematic Installation

High Performance Heating with Heat Pump

  • Save up to 60% energy with A-class efficient UniQubes
  • Comfort temperature regulation for each room
  • Improving the lifetime of pumps
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • Improved annual system efficiency by 20% and more
  • No need to invest in renewable solar heat system

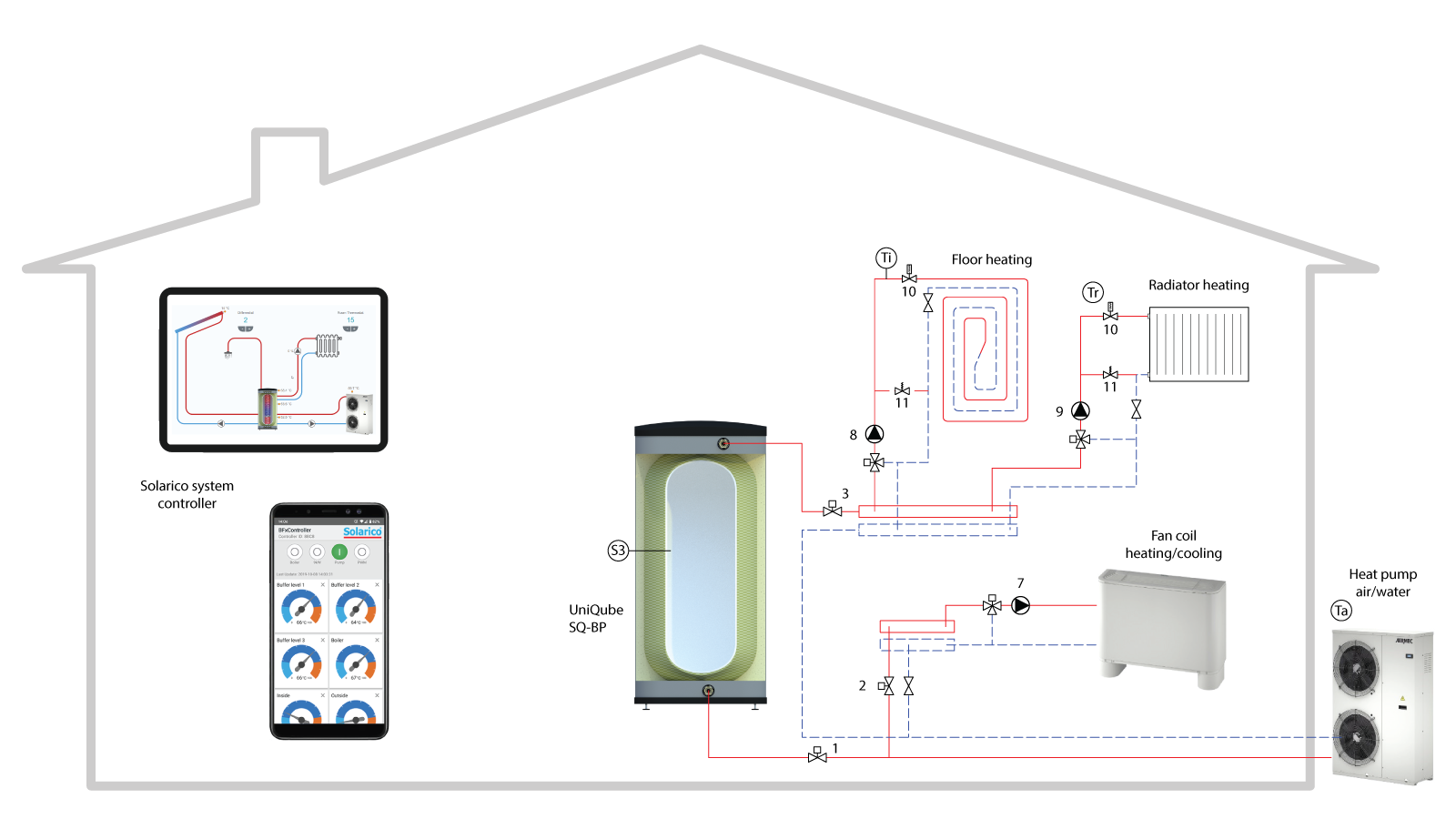

UniQube SQ-B Schematic Installation
UniQube SQ-B Schematic Installation

Heat Pump and Energy Efficient Storage

  • Save up to 60% energy with A-class efficient UniQubes
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • No need to invest in renewable solar heat system
  • Simple installation
UniQube Drain Back

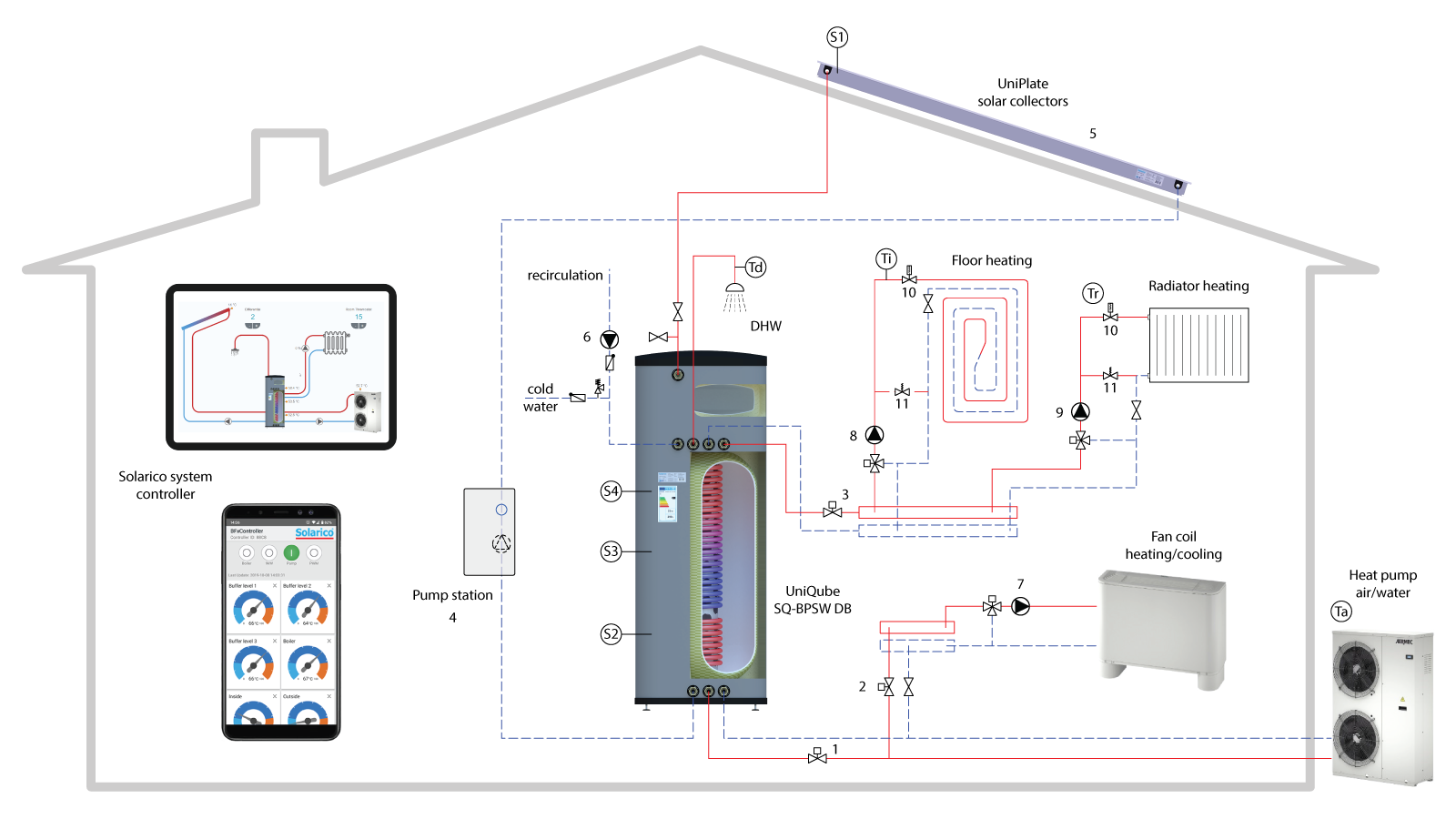

UniQube SQ-BPSW Drain Back Schematic Installation
UniQube SQ-BPSW Drain Back Schematic Installation

Powerfull Drain Back Solar-Heat Pump All in One solution

  • Suitable for systems with irregular hot water consumtion like hospitality industry
  • No overheating in summer and no freezing in winter
  • Supports installation of more collectors than conventional solar systems
  • Real free solar heating for your home
  • Save up to 60% energy with A-class efficient UniQubes
  • Free sun power for Hygienic Hot Water
  • Instant hygienic hot water
  • Comfort temperature regulation for each room
  • Improving the lifetime of pumps
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • Storage of the excessive sun heat
  • Improved annual system efficiency by 20% and more

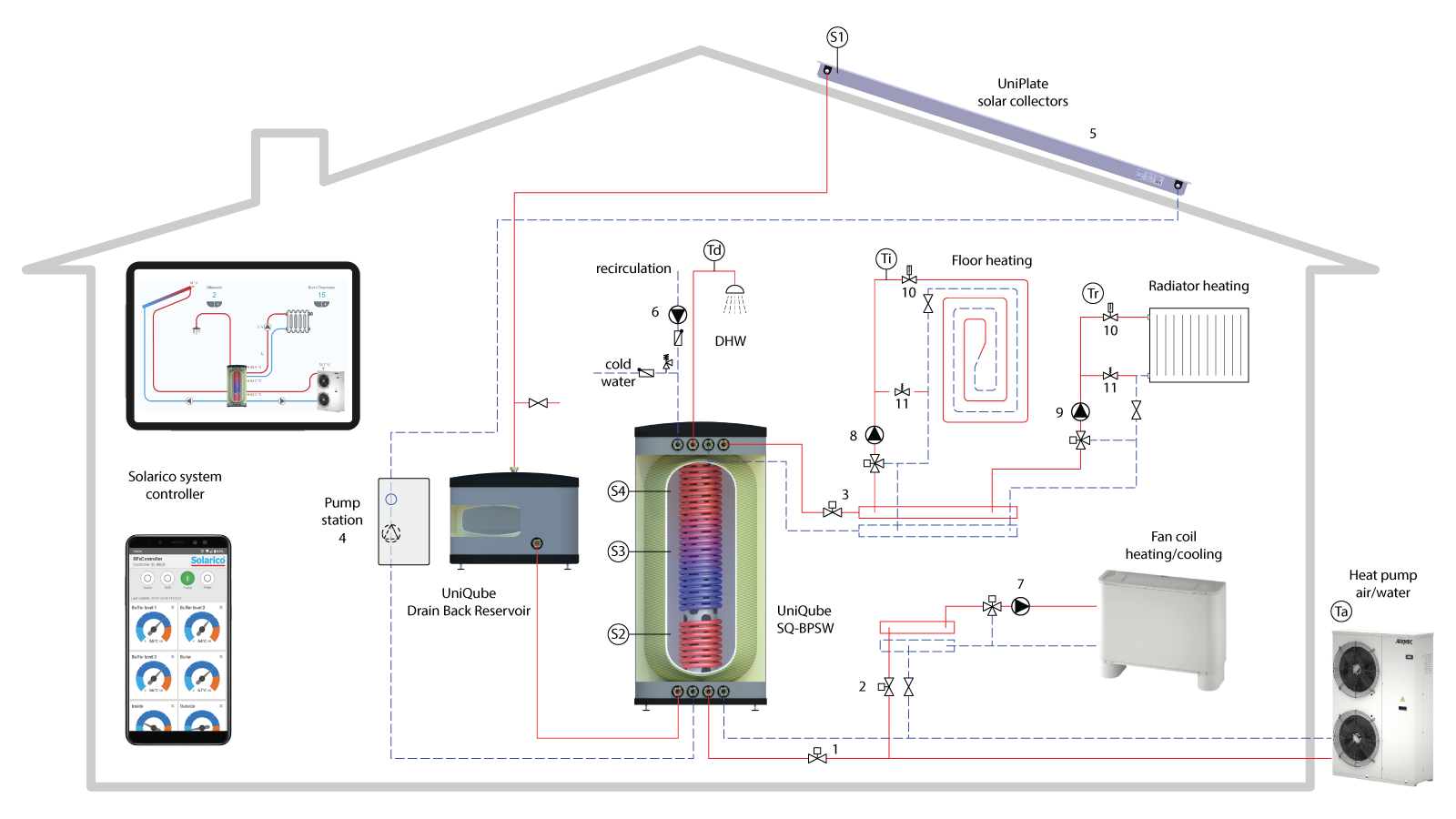

UniQube Drain Back Reservoir Schematic Installation
UniQube Drain Back Reservoir Schematic Installation

Powerfull Drain Back Solar-Heat Pump All in One solution

  • Suitable for systems with irregular hot water consumtion like hospitality industry
  • No overheating in summer and no freezing in winter
  • Supports installation of more collectors than conventional solar systems
  • Real free solar heating for your home
  • Save up to 60% energy with A-class efficient UniQubes
  • Free sun power for Hygienic Hot Water
  • Instant hygienic hot water
  • Comfort temperature regulation for each room
  • Improving the lifetime of pumps
  • Improving the lifetime of heat source
  • Heat storage during the cheap tariff
  • Storage of the excessive sun heat
  • Improved annual system efficiency by 20% and more

Pellet Boiler

UniQube Heat Pump

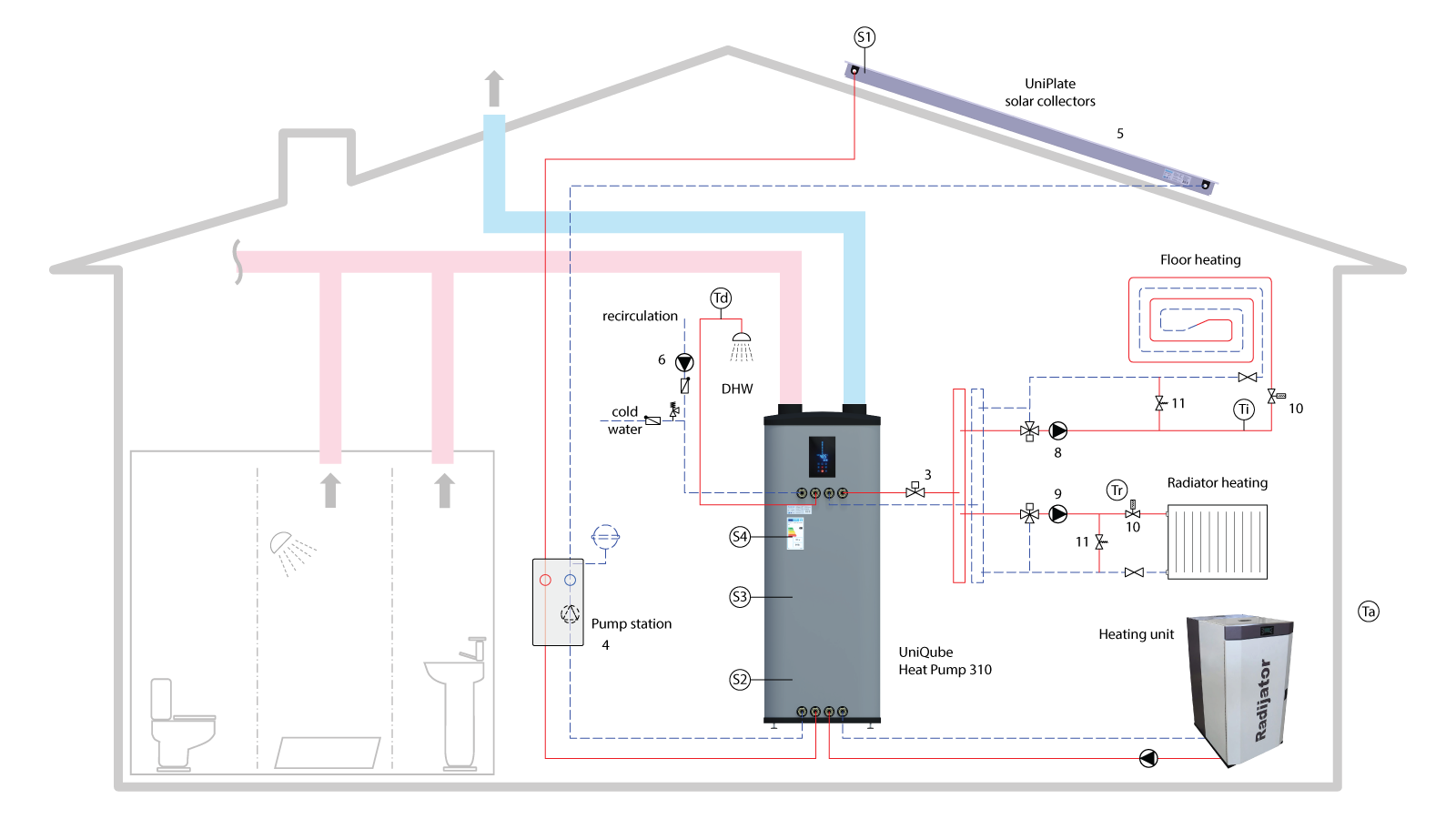

UniQube Heat Pump SQ-BPSW Schematic Installation
UniQube Heat Pump SQ-BPSW Schematic Installation

Solar-Heat Pump Integrated Water Heater with Biomass Boiler back up

  • Integrated heat pump instead of conventional electric heater at the top of the tank
  • Saves more than 70% for domestic water heating compared to conventional water heaters
  • Stores heat during the cheap tariff, and use it on demand
  • Uses the waste heat of your home back into the heating system
  • Uses the ambient heat
  • Operates at external air temperatures of -10 °C.
  • Ventilates bathrooms and/or cools storage rooms
  • Safe water heating – No electrical heater in direct contact with water

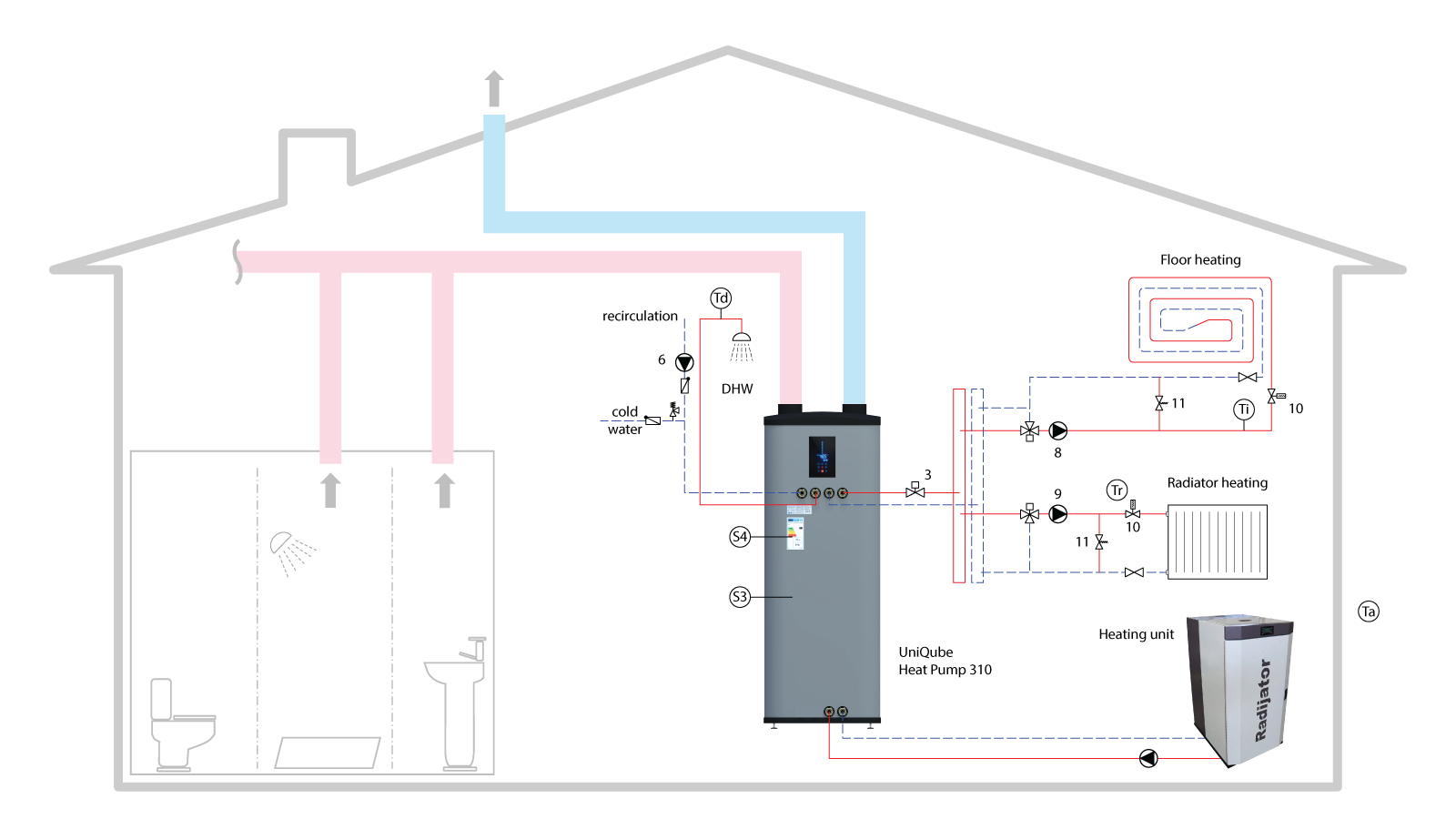

UniQube Heat Pump SQ-BPW Schematic Installation
UniQube Heat Pump SQ-BPW Schematic Installation

Heat Pump Integrated Water Heater with Biomass Boiler back up

  • Integrated heat pump instead of conventional electric heater at the top of the tank
  • Saves more than 70% for domestic water heating compared to conventional water heaters
  • Stores heat during the cheap tariff, and use it on demand
  • Uses the waste heat of your home back into the heating system
  • Uses the ambient heat
  • Operates at external air temperatures of -10 °C.
  • Ventilates bathrooms and/or cools storage rooms
  • Safe water heating – No electrical heater in direct contact with water
UniQube Heat Pump SQ-BPS Schematic Installation
UniQube Heat Pump SQ-BPS Schematic Installation

Heat Pump Integrated Solar Buffer with Biomass Boiler Back Up

  • Integrated heat pump instead of conventional electric heater at the top of the tank
  • Saves more than 70% for domestic water heating compared to conventional water heaters
  • Stores heat during the cheap tariff, and use it on demand
  • Uses the waste heat of your home back into the heating system
  • Uses the ambient heat
  • Operates at external air temperatures of -10 °C.
  • Ventilates bathrooms and/or cools storage rooms
  • Safe water heating – No electrical heater in direct contact with water
UniQube Heat Pump SQ-BP Schematic Installation
UniQube Heat Pump SQ-BP Schematic Installation

Heat Pump Integrated Hydraulic Separator with Biomass Boiler back up

  • Integrated heat pump instead of conventional electric heater at the top of the tank
  • Saves more than 70% for domestic water heating compared to conventional water heaters
  • Stores heat during the cheap tariff, and use it on demand
  • Uses the waste heat of your home back into the heating system
  • Uses the ambient heat
  • Operates at external air temperatures of -10 °C.
  • Ventilates bathrooms and/or cools storage rooms
  • Safe water heating – No electrical heater in direct contact with water

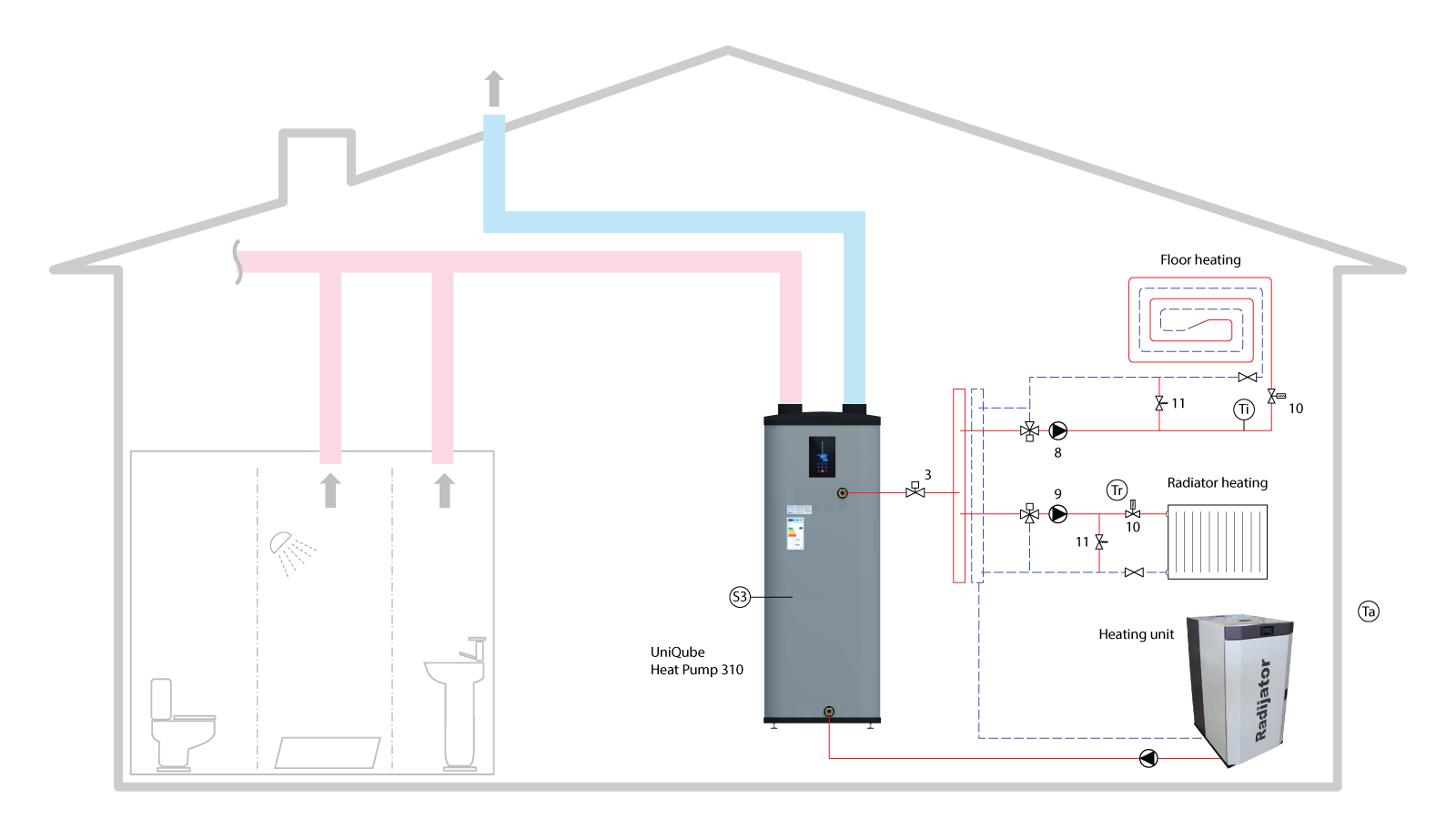

UniQube Heat Pump SQ-B Schematic Installation
UniQube Heat Pump SQ-B Schematic Installation

Heat Pump Integrated Buffer with Biomass Boiler back up

  • Integrated heat pump instead of conventional electric heater at the top of the tank
  • Saves more than 70% for domestic water heating compared to conventional water heaters
  • Stores heat during the cheap tariff, and use it on demand
  • Uses the waste heat of your home back into the heating system
  • Uses the ambient heat
  • Operates at external air temperatures of -10 °C.
  • Ventilates bathrooms and/or cools storage rooms
  • Safe water heating – No electrical heater in direct contact with water
