Heart of your home system
UniQube SQ-BPS
Solar Storage Tank - Stratified Separator Storage Tank
UniQube SQ-BPS
Solar heat can be transferred and stored into the storage tanks and ready to be used on demand. Only high energy efficiency tank is guaranteeing low heat loss.
It can be used for heating domestic water and for support of heating systems.
- Solar storage tank
- Stand-alone storage tank
- Buffer storage tank
- Hydraulic separator storage tank
Description
Technical Specifications
Downloads
Certificates
Tab Title 1
Tab Title 2
Videos
Description
Stratified Solar storage tank function
Solar heat can be transferred and stored into the storage tanks and ready to be used on demand. Only high energy efficiency tank is guaranteeing low heat loss.
It can be used for heating domestic water and for support of heating systems.
- solar heat exchanger made of stainless steel INOX 316 L corrugated pipe
- device for stratification of the heat
- hydraulic separator between the heat source circuit and the heating circuit
- equipped with three sleeves for sensors
- polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
- all flanges are replaceable and it can be modified to any other type of storage tank if necessary
Technical Specifications

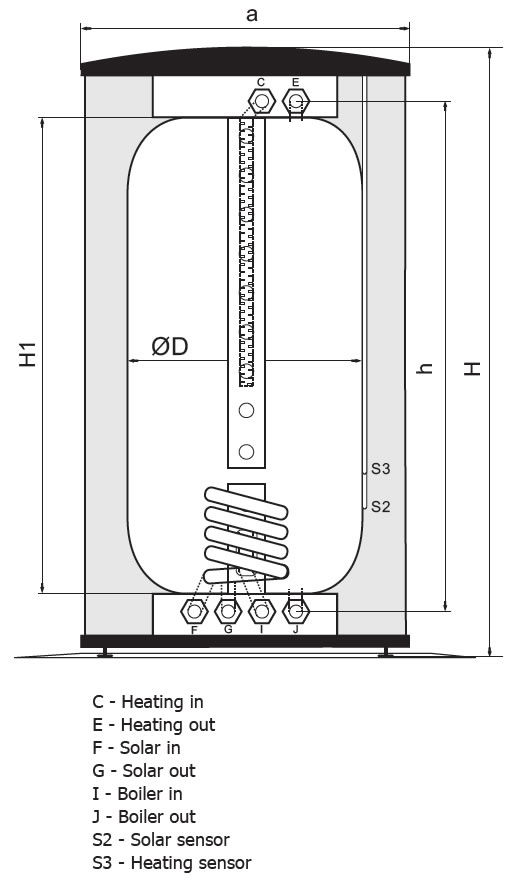

| UNIQUBE MODEL - SOLAR STORAGE TANK, STRATIFIED SEPARATOR STORAGE TANK | |||
|---|---|---|---|
| TYPE SQ-BPS | 310 | 440 | |
| D (diameter) | (mm) | 620 | 620 |
| H1 (height) | (mm) | 1300 | 1730 |
| h (connectors) | (mm) | 1470 | 1900 |
| H (height) | (mm) | 1570 | 2000 |
| a (width) | (mm) | 734 | 734 |
| max. working temp. | (°C) | 90 | 90 |
| max. working pressure | (bar) | 6 | 6 |
| max. test pressure | (bar) | 9 | 9 |
| Net tank capacity | (l) | 305 | 432 |
| Approx. weight | (kg) | 87 | 118 |
| S2 Solar sensor position | (mm) | 1110 | 1550 |
| S3 Heating sensor position | (mm) | 910 | 1350 |
| Pivot measurement | (mm) | 1730 | 2130 |
| Solar Heat Exchanger | |||
| dimension | 5/4" | 5/4" | |
| max. working pressure | (bar) | 10 | 10 |
| max. test pressure | (bar) | 15 | 15 |
| capacity | (l) | 5 | 8 |
| output area | (m²) | 1,2 | 2 |
Downloads
Certificates
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
