Heart of your home system
UniQube Heat Pump SQ-BPW HP 310
Heat Pump with integrated UniQube Storage Tank
UniQube Heat Pump SQ-BPW HP 310
Heat pump with integrated UniQube enables savings of up to 70% per year and can operate at external air temperatures of -10°C. An additional space can be cooled or ventilated with this model. The tank inside is combining functions of stratification, hygienic water heater, buffer and hydraulic separator.
It is one-piece solution for high efficiency central heating systems.
- Stand-alone storage tank
- Buffer storage tank
- Hydraulic separator storage tank
- Combined storage tank
- Home water heater
Heat pump with integrated stratified domestic water heater function
Heat pump with integrated UniQube enables savings of up to 70% per year and can operate at external air temperatures of -10°C. An additional space can be cooled or ventilated with this model. The tank inside is combining functions of stratification, hygienic water heater, buffer and hydraulic separator.
It is one-piece solution for high efficiency central heating systems.
- High C.O.P. - (coefficient of performance) is a rating which tells us how much heat is produced compared to the amount of electricity used
- Manufactured according to highest EU standards - manufactured in Europe according to highest standards
- Simple installation and control - heat pumps for sanitary water are simple to install into your area and they're even simpler to control. You'll have virtually no work with them
- Heat Transmitter - coiled in the inside of buffer water container, it has a lifespan that is practically unlimited, since it is not in direct contact with sanitary water
- Energy Class A - heat pumps for sanitary water with the A Energy Class are placed among the best energy efficient machines on the European market
- Touch-screen Intelligent Control - the UniQube Heat Pump is controlled with a friendly and logical user interface on a comfortably big touch-screen. Options for connection to different heating systems (heating oil, wood, pellets or solar system). Options for connection to photovoltaic
- Utilizing Inlet/Outlet Air - heating the sanitary water, ventilation of another room with its inlet air, and cooling another room with its outlet air - like the cellar with storage for winter, for example

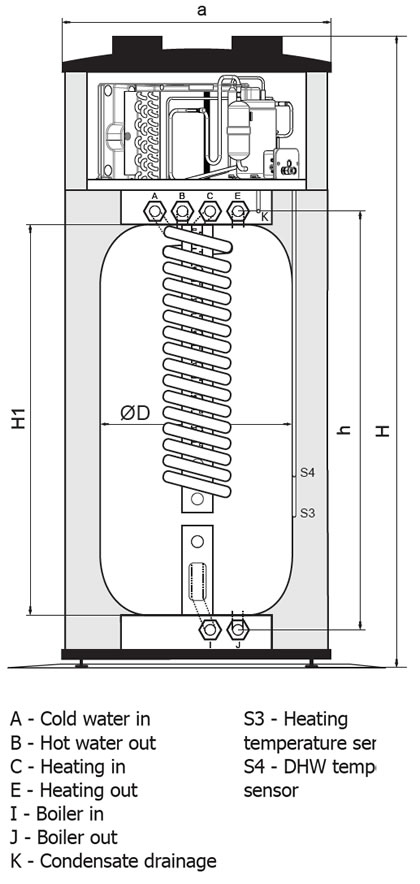

| UNIQUBE MODEL - DOMESTIC WATER HEATER, STRATIFIED SEPARATOR STORAGE TANK | ||
|---|---|---|
| TYPE SQ-BPW | 310 | |
| D (diameter) | (mm) | 620 |
| H1 (height) | (mm) | 1300 |
| h (connectors) | (mm) | 1470 |
| H (height) | (mm) | 2000 |
| a (width) | (mm) | 734 |
| max. working temp. | (°C) | 90 |
| max. working pressure | (bar) | 6 |
| max. test pressure | (bar) | 9 |
| Net tank capacity | (l) | 295 |
| Approx. weight | (kg) | 108 |
| S3 Heating sensor position | (mm) | 910 |
| S4 DHW sensor position | (mm) | 710 |
| Pivot measurement | (mm) | 2130 |
| Water Heat Exchanger | ||
| dimension | 5/4" | |
| max. working pressure | (bar) | 10 |
| max. test pressure | (bar) | 15 |
| capacity | (l) | 15 |
| output area | (m²) | 3,8 |
| UNIQUBE HEAT PUMP UNIT | ||
|---|---|---|
| TYPE DHWHP-O | 3000 | |
| Operational area of the compressor | °C | -3÷35 |
| Max. temperature of output water | °C | 55 |
| Heat output | W | 2800 |
| C.O.P. A20/W15-W45 | 4.1 | |
| Type of compressor | Hitachi - rotary | |
| Compressor consumption | W | 695 |
| Rated current of the compressor | A | 3.2 |
| Refrigerant | R134a | |
| Electricity supply | 230 V / 1 Ph / 50 Hz | |
| Required fuse | A | 16 |
| Noise level | dB(A) | 48 |
| Airflow | m3 | 500 |
| Available pressure | Pa | 60 |
| Diameter of air pipe | mm | 150 |
| Max. length of air pipe | m | 10 |
| Net weight of heat pump unit | kg | 40 |
| Use of hot water cycle | XL | |
| Sanitary water heating energy class | A |
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
