UniQube Heat Pump SQ-BPSW HP 310
Solar Storage Tank - Domestic Water Heater - Stratified Separator Storage Tank
UniQube Heat Pump SQ-BPSW HP 310
Heat pump with integrated UniQube enables savings of up to 70% per year and can operate at external air temperatures of -10°C. An additional space can be cooled or ventilated with this model. The tank inside is fully equipped model, combining functions of stratification, hygienic water heater, buffer, hydraulic separator, solar storage tank and solar support for the heating system.
It is one-piece solution for high efficiency central heating systems.
- Solar storage tank
- Stand-alone storage tank
- Buffer storage tank
- Hydraulic separator storage tank
- Combined storage tank
- Home water heater
6 functions heat pump with integrated tank
Heat pump with integrated UniQube enables savings of up to 70% per year and can operate at external air temperatures of -10°C. An additional space can be cooled or ventilated with this model. The tank inside is fully equipped model, combining functions of stratification, hygienic water heater, buffer, hydraulic separator, solar storage tank and solar support for the heating system.
It is one-piece solution for high efficiency central heating systems.
- High C.O.P. - (coefficient of performance) is a rating which tells us how much heat is produced compared to the amount of electricity used
- Manufactured according to highest EU standards - manufactured in Europe according to highest standards
- Simple installation and control - heat pumps for sanitary water are simple to install into your area and they're even simpler to control. You'll have virtually no work with them
- Heat Transmitter - coiled in the inside of buffer water container, it has a lifespan that is practically unlimited, since it is not in direct contact with sanitary water
- Energy Class A - heat pumps for sanitary water with the A Energy Class are placed among the best energy efficient machines on the European market
- Touch-screen Intelligent Control - the UniQube Heat Pump is controlled with a friendly and logical user interface on a comfortably big touch-screen. Options for connection to different heating systems (heating oil, wood, pellets or solar system). Options for connection to photovoltaic
- Utilizing Inlet/Outlet Air - heating the sanitary water, ventilation of another room with its inlet air, and cooling another room with its outlet air - like the cellar with storage for winter, for example

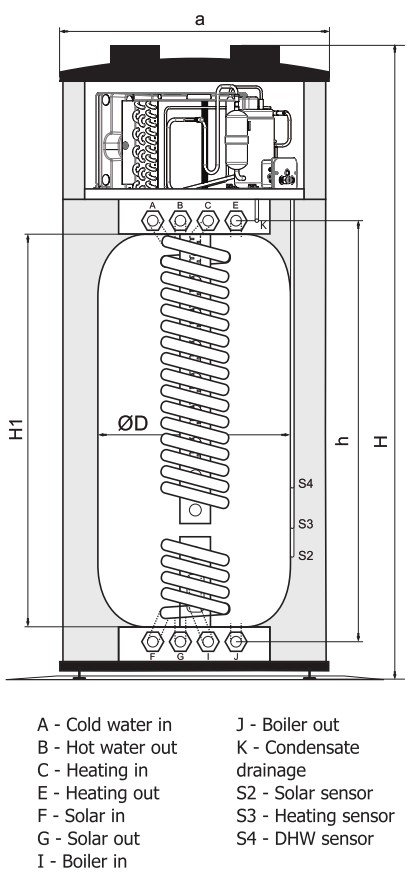

| UNIQUBE MODEL - SOLAR STORAGE TANK, DOMESTIC WATER HEATER, STRATIFIED SEPARATOR STORAGE TANK | ||
|---|---|---|
| TYPE SQ-BPSW | 310 | |
| D (diameter) | (mm) | 620 |
| H1 (height) | (mm) | 1300 |
| h (connectors) | (mm) | 1470 |
| H (height) | (mm) | 2000 |
| a (width) | (mm) | 734 |
| max. working temp. | (°C) | 90 |
| max. working pressure | (bar) | 6 |
| max. test pressure | (bar) | 9 |
| Net tank capacity | (l) | 290 |
| Approx. weight | (kg) | 119 |
| S2 Solar sensor position | (mm) | 1110 |
| S3 Heating sensor position | (mm) | 910 |
| S4 DHW sensor position | (mm) | 710 |
| Pivot measurement | (mm) | 2130 |
| Solar Heat Exchanger | ||
| dimension | 5/4" | |
| max. working pressure | (bar) | 10 |
| max. test pressure | (bar) | 15 |
| capacity | (l) | 5 |
| output area | (m²) | 1,2 |
| Water Heat Exchanger | ||
| dimension | 5/4" | |
| max. working pressure | (bar) | 10 |
| max. test pressure | (bar) | 15 |
| capacity | (l) | 15 |
| output area | (m²) | 3,8 |
| UNIQUBE HEAT PUMP UNIT | ||
|---|---|---|
| TYPE DHWHP-O | 3000 | |
| Operational area of the compressor | °C | -3÷35 |
| Max. temperature of output water | °C | 55 |
| Heat output | W | 2800 |
| C.O.P. A20/W15-W45 | 4.1 | |
| Type of compressor | Hitachi - rotary | |
| Compressor consumption | W | 695 |
| Rated current of the compressor | A | 3.2 |
| Refrigerant | R134a | |
| Electricity supply | 230 V / 1 Ph / 50 Hz | |
| Required fuse | A | 16 |
| Noise level | dB(A) | 48 |
| Airflow | m3 | 500 |
| Available pressure | Pa | 60 |
| Diameter of air pipe | mm | 150 |
| Max. length of air pipe | m | 10 |
| Net weight of heat pump unit | kg | 40 |
| Use of hot water cycle | XL | |
| Sanitary water heating energy class | A |
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
