Heart of your home system
UniQube Heat Pump+ SQ-BPSW 310
Heat Pump Unit - Solar Storage Tank - Domestic Water Heater - Stratified Separator Storage Tank
UniQube Heat Pump+ SQ-BPSW 310
UniQube Heat Pump+ is special high energy efficiency package, as a solution for heating residential and industrial buildings, enabling reduction of cost of up to 75% per year and can operate at external air temperatures of -20°C. It contains UniQube central hot water storage tank, Heat Pump unit, digital controller Sorel XHCC.
- High C.O.P. of 4.5
- Energy Class A+
- Production of hot water up to 60 °C
- Production of hot domestic water with external temperatures from -20 °C up to 42 °C
- Tank capacity 310l
UniQube Heat Pump+ is special high energy efficiency package, as a solution for heating residential and industrial buildings, enabling reduction of cost of up to 75% per year and can operate at external air temperatures of -20°C. It contains UniQube central hot water storage tank, Heat Pump unit, digital controller Sorel XHCC.
The tank inside is fully equipped model, combining functions of stratification, hygienic water heater, buffer, hydraulic separator, solar storage tank and solar support for the heating system.
- High C.O.P. of 4.5 - (coefficient of performance) is a rating which tells us how much heat is produced compared to the amount of electricity used
- Manufactured according to highest EU standards - manufactured in Europe according to highest standards
- Heat Transmitter - coiled in the inside of buffer water container, it has a lifespan that is practically unlimited, since it is not in direct contact with sanitary water
- Energy Class A+ - heat pumps for sanitary water with the A+ Energy Class are placed among the best energy efficient machines on the European market
- Touch-screen Intelligent Control - the UniQube Heat Pump is controlled with a friendly and logical user interface on a comfortably big touch-screen. Options for connection to different heating systems (heating oil, wood, pellets or solar system). Options for connection to photo-voltaic
| UNIQUBE SQ-BPSW 310 HEAT PUMP+ | ||||||
|---|---|---|---|---|---|---|
| AERMEC ANK I - HX | 020 | 025 | 040 | |||
| V/ph/Hz | 230V~50Hz | |||||
| 12°C/7°C | Cooling capacity | (1) | kW | 6,00 | 7,49 | 9,59 |
| Total input power | (1) | kW | 1,89 | 2,52 | 3,04 | |
| EER | (1) | 3,18 | 2,97 | 3,16 | ||
| ESEER | (1) | 4,89 | 5,01 | 4,78 | ||
| Water flow rate | (1) | l/h | 1026 | 1258 | 1622 | |
| High static pressure | (1) | kPa | 74 | 68 | 76 | |
| 40°C/45°C | Heating capacity | (2) | kW | 6,08 | 7,61 | 9,16 |
| Total input power | (2) | kW | 1,86 | 2,36 | 2,95 | |
| COP | (2) | 3,28 | 3,23 | 3,1 | ||
| Water flow rate | (2) | l/h | 1062 | 1351 | 1646 | |
| High static pressure | (2) | kPa | 76 | 69 | 77 | |
| Performance under average climatic conditions (Average) UE n°811/2013 Pdesignh ≤ 70kW | ||||||
| Pdesignh | (3) | 6 | 7 | 9 | ||
| SCOP | (3) | 3,83 | 3,83 | 3,6 | ||
| ηS | (3) | 150 | 150 | 141 | ||
| Efficiency Energy Class | A+ | A+ | A+ | |||
| Cooling mode for low temperature | ||||||
| ηSC | 161,7 | 167 | 172,3 | |||
| SEER | 4,12 | 4,25 | 4,38 | |||

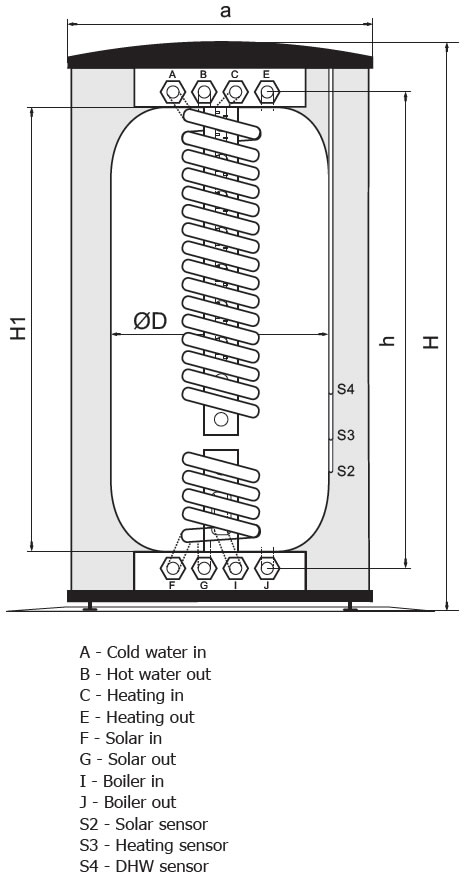

| UNIQUBE MODEL - SOLAR STORAGE TANK, DOMESTIC WATER HEATER, STRATIFIED SEPARATOR STORAGE TANK | ||
|---|---|---|
| TYPE SQ-BPSW | 310 | |
| D (diameter) | (mm) | 620 |
| H1 (height) | (mm) | 1300 |
| h (connectors) | (mm) | 1470 |
| H (height) | (mm) | 2000 |
| a (width) | (mm) | 734 |
| max. working temp. | (°C) | 90 |
| max. working pressure | (bar) | 6 |
| max. test pressure | (bar) | 9 |
| Net tank capacity | (l) | 290 |
| Approx. weight | (kg) | 119 |
| S2 Solar sensor position | (mm) | 1110 |
| S3 Heating sensor position | (mm) | 910 |
| S4 DHW sensor position | (mm) | 710 |
| Pivot measurement | (mm) | 2130 |
| Solar Heat Exchanger | ||
| dimension | 5/4" | |
| max. working pressure | (bar) | 10 |
| max. test pressure | (bar) | 15 |
| capacity | (l) | 5 |
| output area | (m²) | 1,2 |
| Water Heat Exchanger | ||
| dimension | 5/4" | |
| max. working pressure | (bar) | 10 |
| max. test pressure | (bar) | 15 |
| capacity | (l) | 15 |
| output area | (m²) | 3,8 |
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
