UniQube SQ-BP

Stratified Separator Storage Tank

UniQube SQ-BP

Separator storage tank combined with stratification unit is ideal to hydraulically separate the heat source circuit and the heating circuit which results in easy control over the circulating pumps and improves their lifetime.

Its functionality is based on a hydraulic separator principle.

  • Stand-alone storage tank
  • Buffer storage tank
  • Hydraulic separator storage tank

Hydraulic Separator storage tank function and stratified

Separator storage tank combined with stratification unit is ideal to hydraulically separate the heat source circuit and the heating circuit which results in easy control over the circulating pumps and improves their lifetime.

Its functionality is based on a hydraulic separator principle.

  • device for stratification of the heat
  • hydraulic separator between the heat source circuit and the heating circuit
  • equipped with two sleeves for sensors
  • polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
  • all flanges are replaceable and it can be modified to any other type of storage tank if necessary



UNIQUBE MODEL - STRATIFIED SEPARATOR STORAGE TANK
TYPE SQ-BP310440
D (diameter)(mm)620620
H1 (height)(mm)13001730
h (connectors)(mm)14701900
H (height)(mm)15702000
a (width)(mm)734734
max. working temp.(°C)9090
max. working pressure(bar)66
max. test pressure(bar)99
Net tank capacity(l)310440
Approx. weight(kg)77100
S3 Heating sensor position(mm)9101350
Pivot measurement(mm)17302130

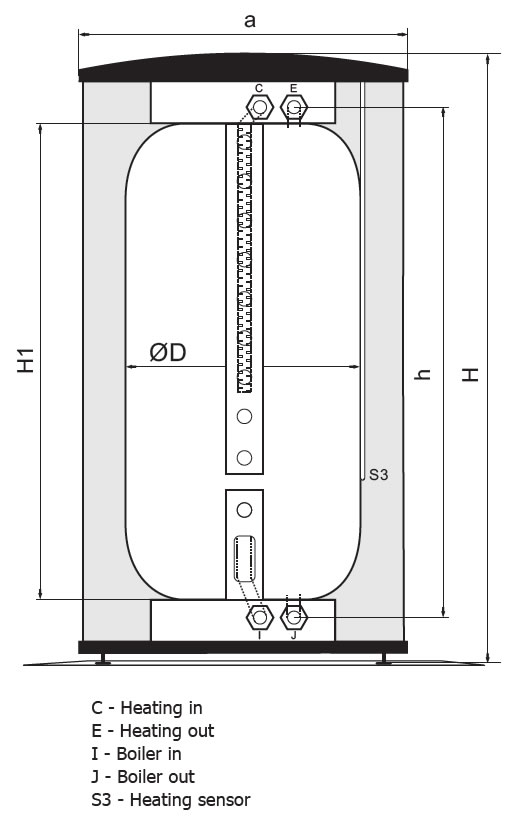

UniQube SQ-BP Section Dimensions

Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV  Hessen, for complying with Pressure Equipment Directive

UniQube SQ-BP Schematic Installation
